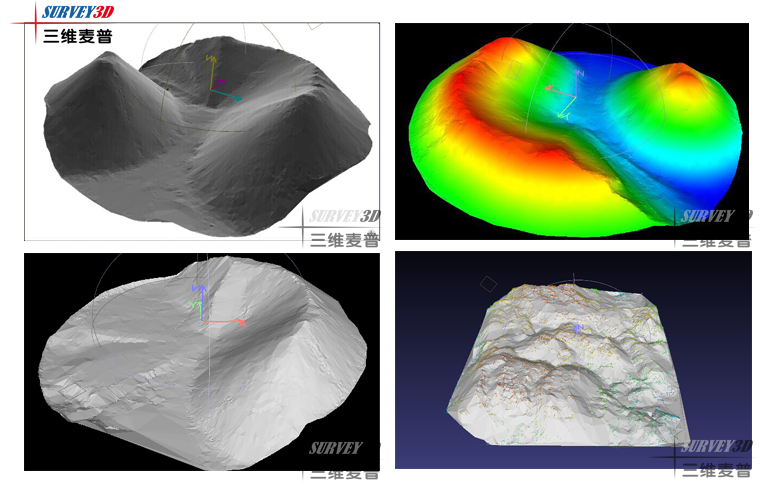

This product adopts new laser measurement technology, the measurement range can reach 1700 meters (natural reflection target 500 meters), the accuracy is less than 2 cm, the measurement speed reaches 10 points/second; using high-precision optical encoder for angle measurement, the accuracy is up to 2 seconds, independent of the environment; the instrument works semi-automatically, only need personnel to turn the telescope to scan, scanning data directly stored in memory; professional 3D modeling Survey mapping software, powerful, directly reads the data of the scanned points in the memory to generate DTM model; can be unified volume, area, surface area, volume difference and other spatial data information; the instrument is compact, weighing only 5.3 kg, easy to carry; quick installation, more efficient than the manual single-point measurement method to collect data, allowing you to grasp the information you need at any time. SW31 is our newly developed 3D laser scanning system, which can be applied to the measurement of material inventory and other 3D scanning applications. The whole system mainly consists of high precision angle measuring system and high frequency laser distance measuring part。

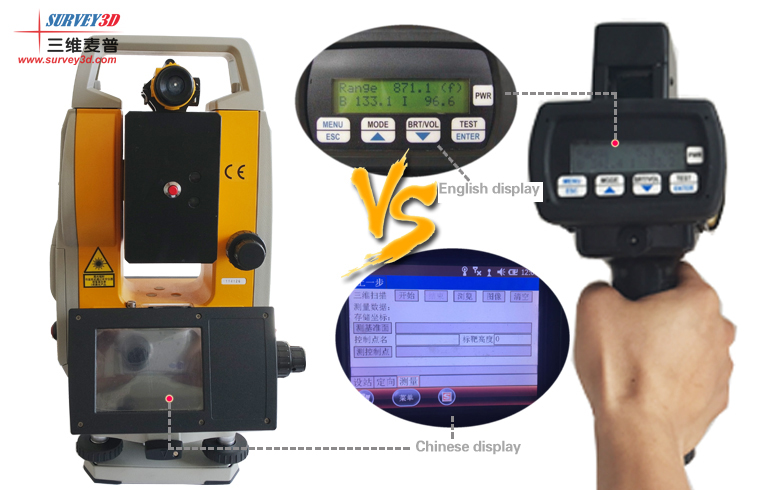

1、SW31 for Chinese operating interface while ContourXLRIC for English display, SW31 machine integrated Chinese software；

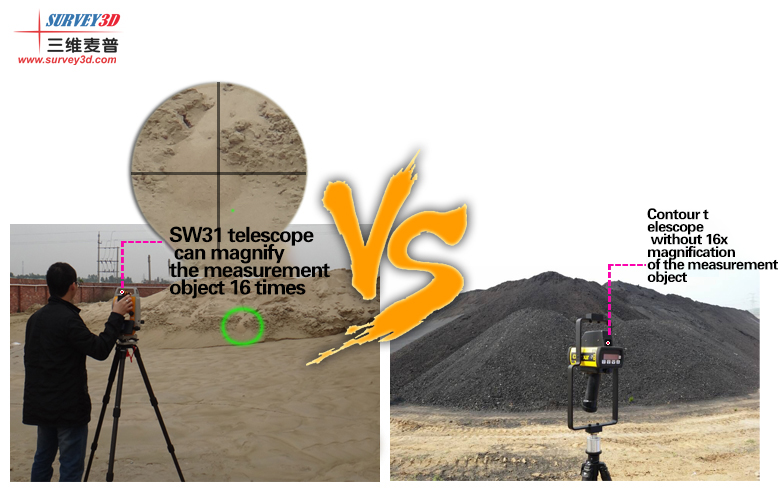

2、SW31 can be amplified 16x while ContourXLRIC cannot be amplified 16x；

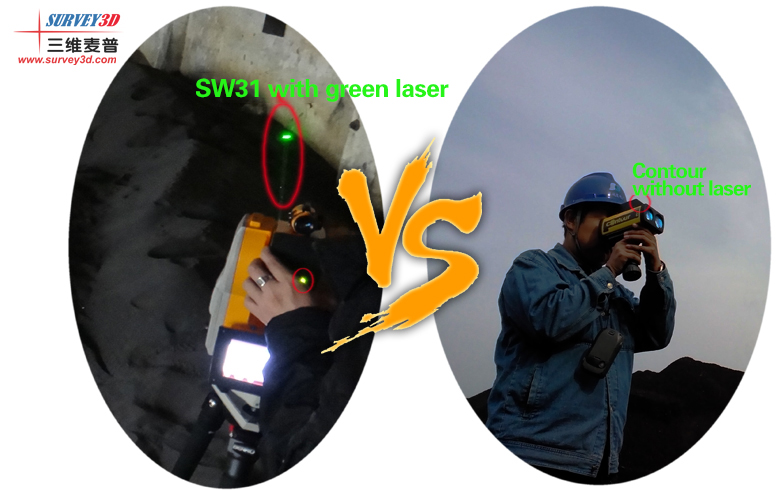

3、SW31 with green laser guidance and ContourXLRIC without green laser guidance；

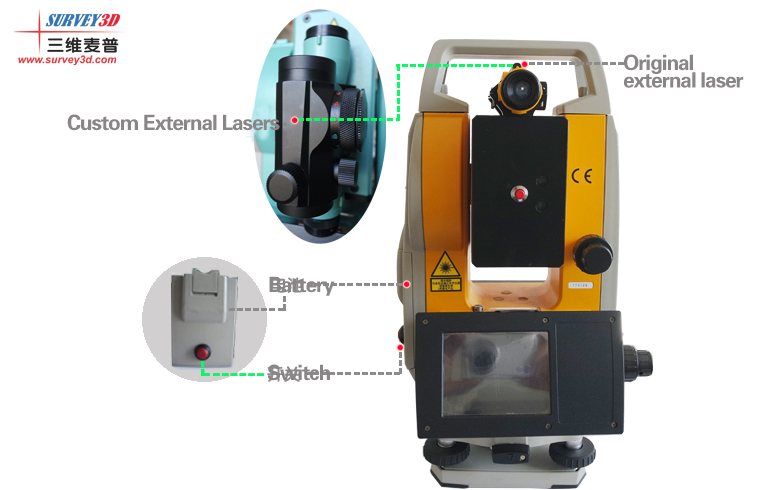

4、Custom External Lasers；

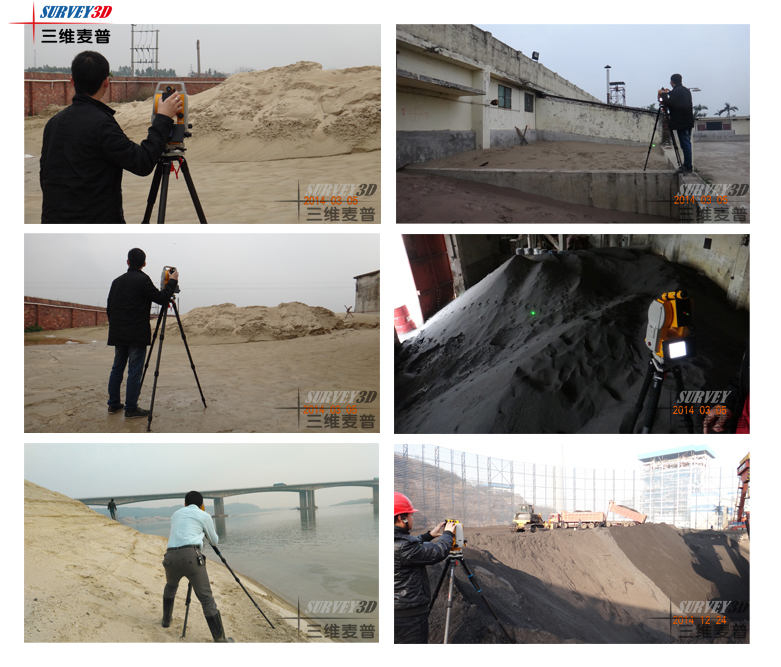

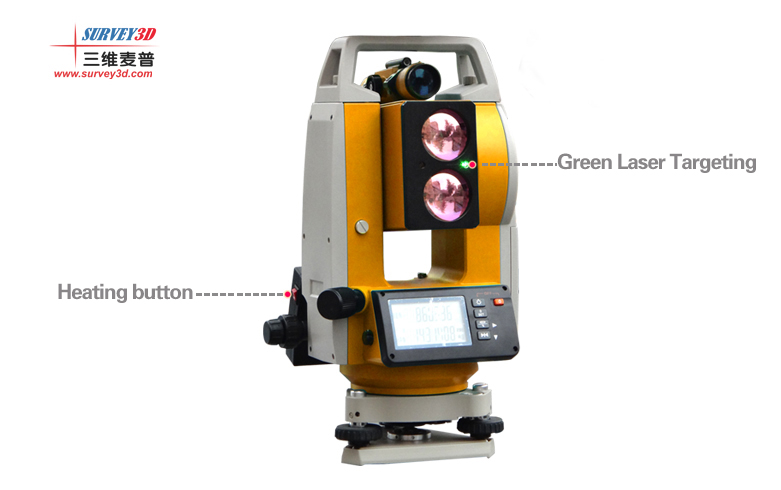

5、SW31 contains a heating module, which can resist high temperature and prevent the LCD screen from failing at low temperature, and can be measured in various environments, as the following real scenes are shot：
