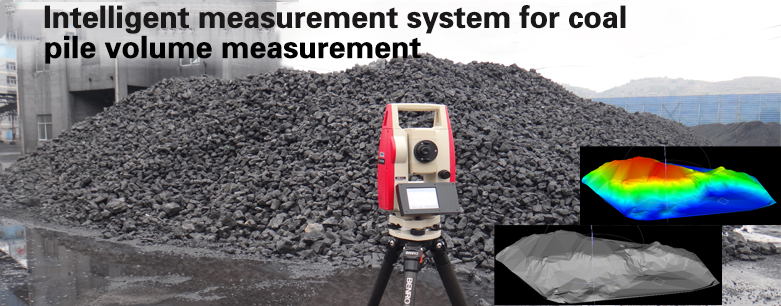

SW11 3D laser pan coal total station is our newly developed 3D laser scanning system, which can be applied to the measurement of material inventory and other 3D scanning applications. The whole system is mainly composed of high precision angle measuring system and high frequency laser ranging part.

This product adopts new laser measurement technology, the measurement range reaches 1700 meters (natural reflection target 500 meters), the accuracy is less than 5 mm, the measurement speed can reach 3 points / second; using high-precision photoelectric encoder for angle measurement, angle measurement accuracy up to 2 seconds, independent of the environment; instrument semi-automatic work, work only need to manually turn the telescope can be automatically scanned, scanning data directly stored in memory The system adopts professional 3D modeling software, which is powerful enough to read the scanned point data in the memory directly and generate DTM model; it can calculate the volume, area and other spatial data information; the instrument is compact, weighing 5.3 kg, and a single person can complete the measurement work; it is quick to install and more efficient than the manual single point measurement method to collect data.
