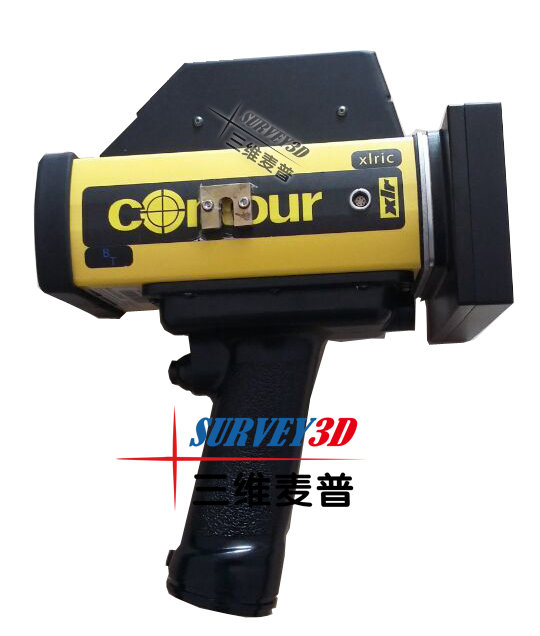

Product Name： ContourXlRIC ALL-in-one
Model：
Brand：
Price：
Products
Contour Three-dimensional laser all-in-one system creates three-dimensional graphics in real time when you press the rangefinder measurement button by hand, and can calculate the volume of the pile in real time. The measurement data can also be downloaded to a computer and post-processed through professional software to generate more detailed area, volume, reports and three-dimensional graphics, and the three-dimensional graphics can be viewed. The instrument is light and convenient, single handheld operation, the instrument is waterproof and dustproof, can be used in harsh environments, the equipment is widely used in the mineral industry, logistics industry, power industry, coal piles, ore and other volume measurement.
Technical parameters
Angle measurement
Horizontal angle range 0-360°
Vertical angle range -40°- +40°
Horizontal angle accuracy 0.5°
Vertical angle accuracy 0.1
Minimum reading 0.1°
Angle measurement method Electronic compass angle measurement
Point picking speed 2 points/sec
No cooperative target measurement
Ranging laser wavelength 905
Distance measuring laser type Class 1 human eye safety laser (safety level)
Coal pile measurement range 160-200 m (1000 m for natural objects in coal piles)
Distance measuring accuracy 0.1m
Small distance readings Up to 0.1m
Laser divergence angle Spot size at 100 m: 30cm
Base optical aligner
Type Optical-to-Point
Alignment accuracy Alignment accuracy of 1.5mm at 1.5m
Laser Guided Light
Laser Type No laser guidance, aiming laser type through the red spot of the glass window
Rangefinder batteries
Type 9.6v rechargeable NiMH battery
Operation time Can work more than 4 hours
Data storage/communication
Expandable memory Standard 8G memory, expandable to 32G
Data Interface U disk, Bluetooth, Wifi, 3G Internet access and voice call function (optional)
Data Format Text format/CSV format
Physical indicators of the whole machine
Weight of the whole machine 4.5kg
Volume 21×21×55cm
Environmental indicators
Operating temperature range -30℃ to +60℃, polar low temperature resistant type -40℃ to +60℃ (customizable)
Dustproof/waterproof IP67, rainproof and dustproof
Hand-thin display
Display 3.5" resistive color touch screen, 640 x 480 pixels, adjustable brightness
Handbook OS
Windows Mobile 6.5
Main Frequency 800MHz
On-board disk coal software features
Measurement method Rear rendezvous method, site measurement method
Number of control points Unlimited, can select any control point in memory for positioning orientation
Real-time graphical display There are
Real-time noise removal Yes, can automatically remove noise from trees, fences, coal sheds, machinery and equipment on site
Real-time volume calculation There are
Raw coordinate output With original coordinate data output, easy for users to verify and check, good data compatibility
Pancoal software features
Three-dimensional modeling methods DTM triangle net method
Volume calculation method Can be calculated in stacks and blocks and layers
Intelligent measurement navigation There are
Three-dimensional dynamic observation There are


Site illustration and effect picture display

Comparison of ContourXLRIC and ContourXLRIC All-in-one 3D Laser Disc Coal Meter
